Regular price $65.00
/
Shipping calculated at checkout.

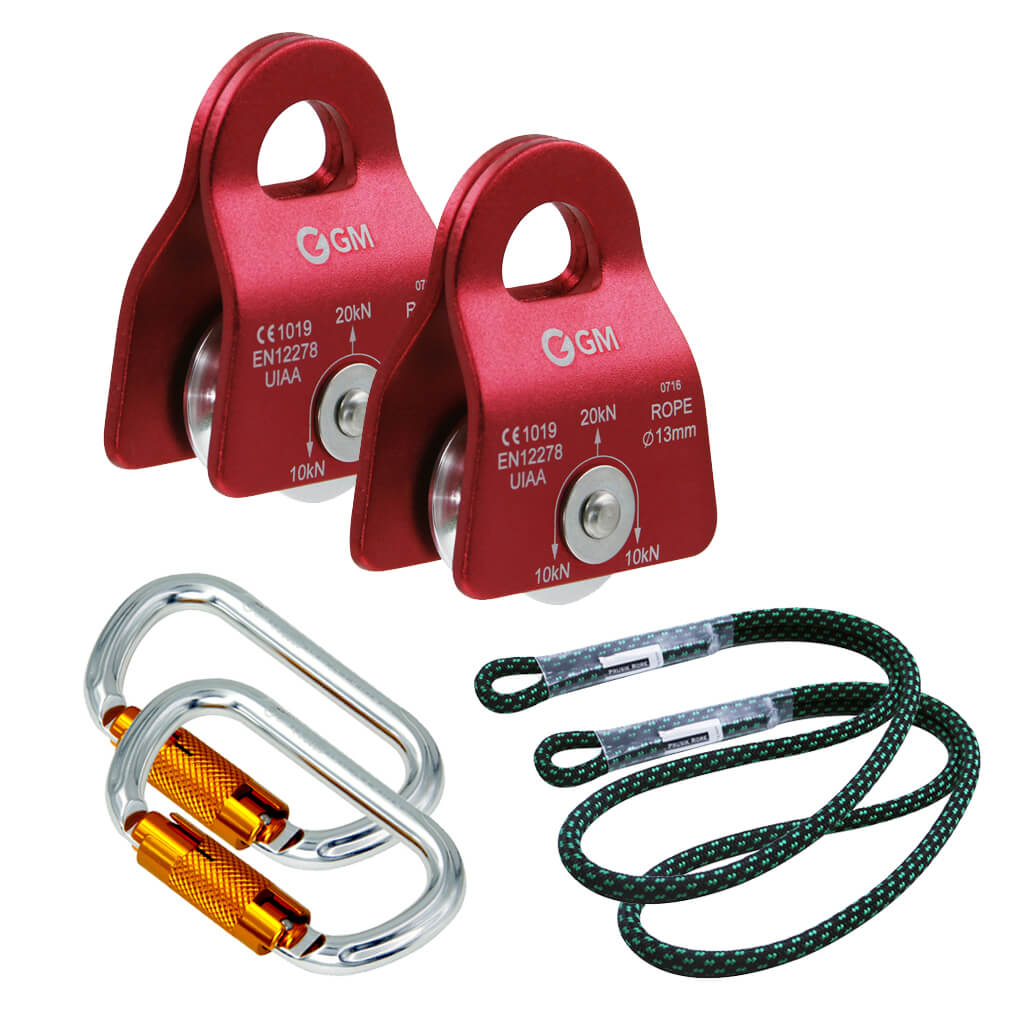

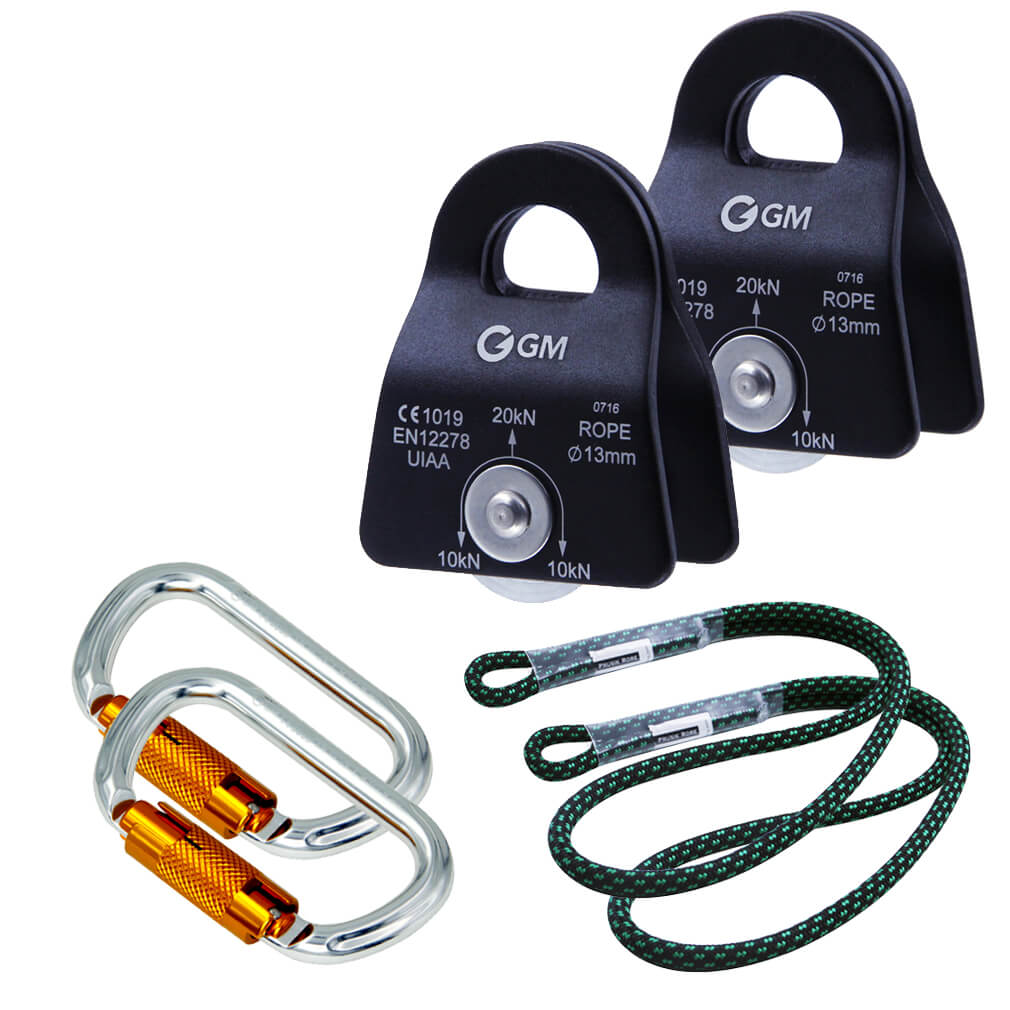

Kit Includes:

2x Prusik Minding Pulley
2x Pre-sewn Prusik Loop 8mm 18"
2x Oval Locking Carabiner ( Twist Lock or Screw Lock to your preference)

TECHNICAL SPECS

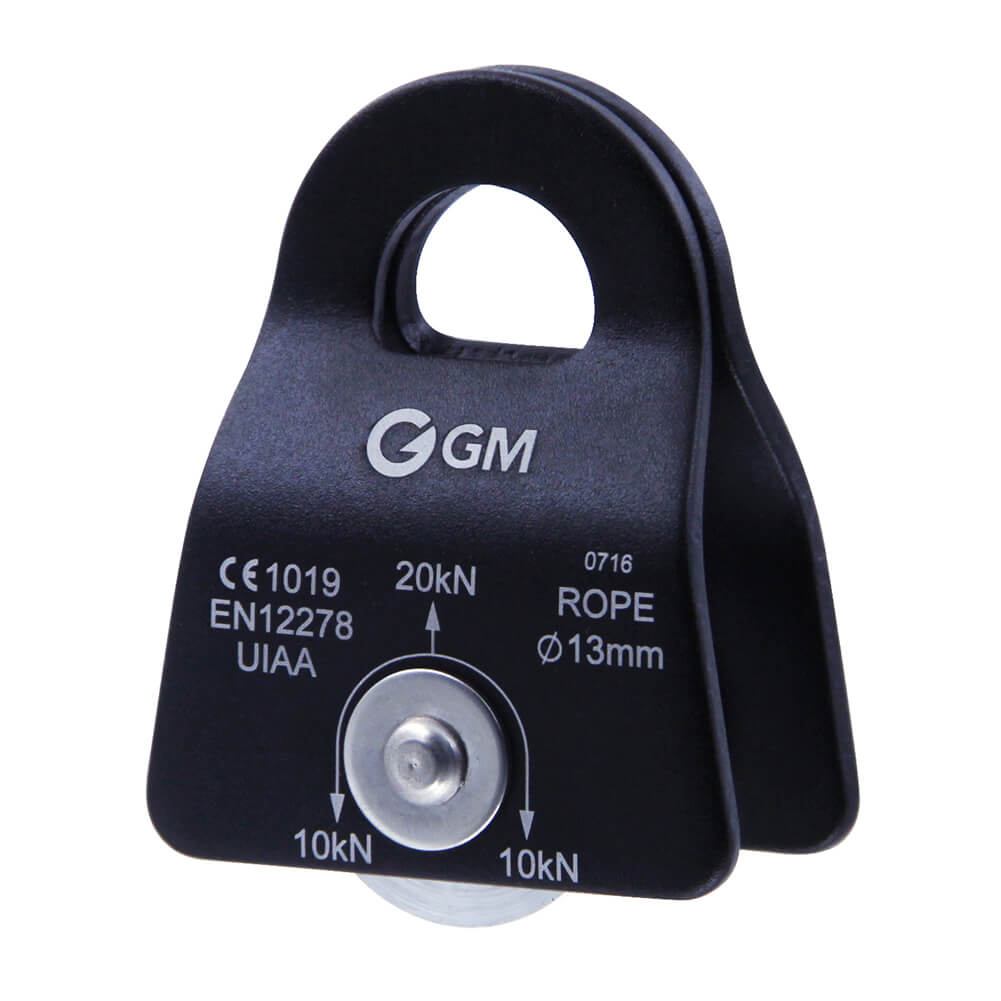

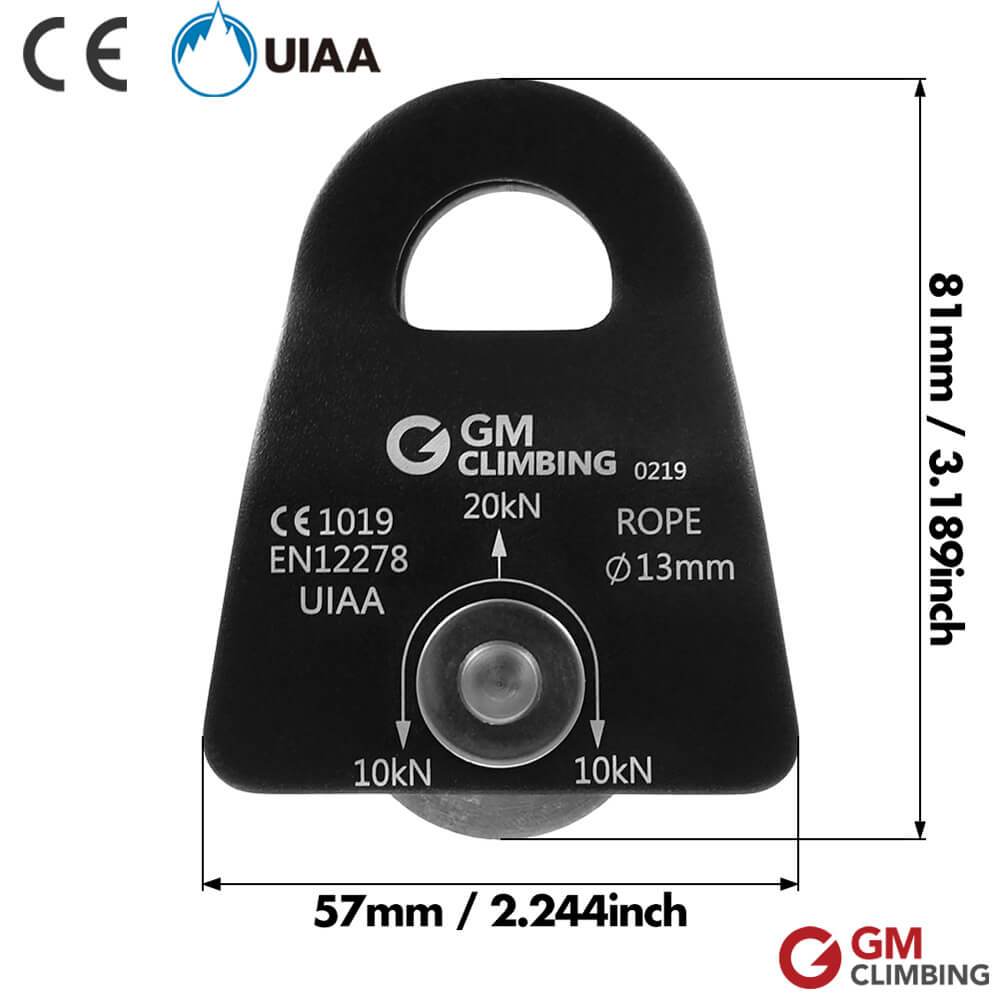

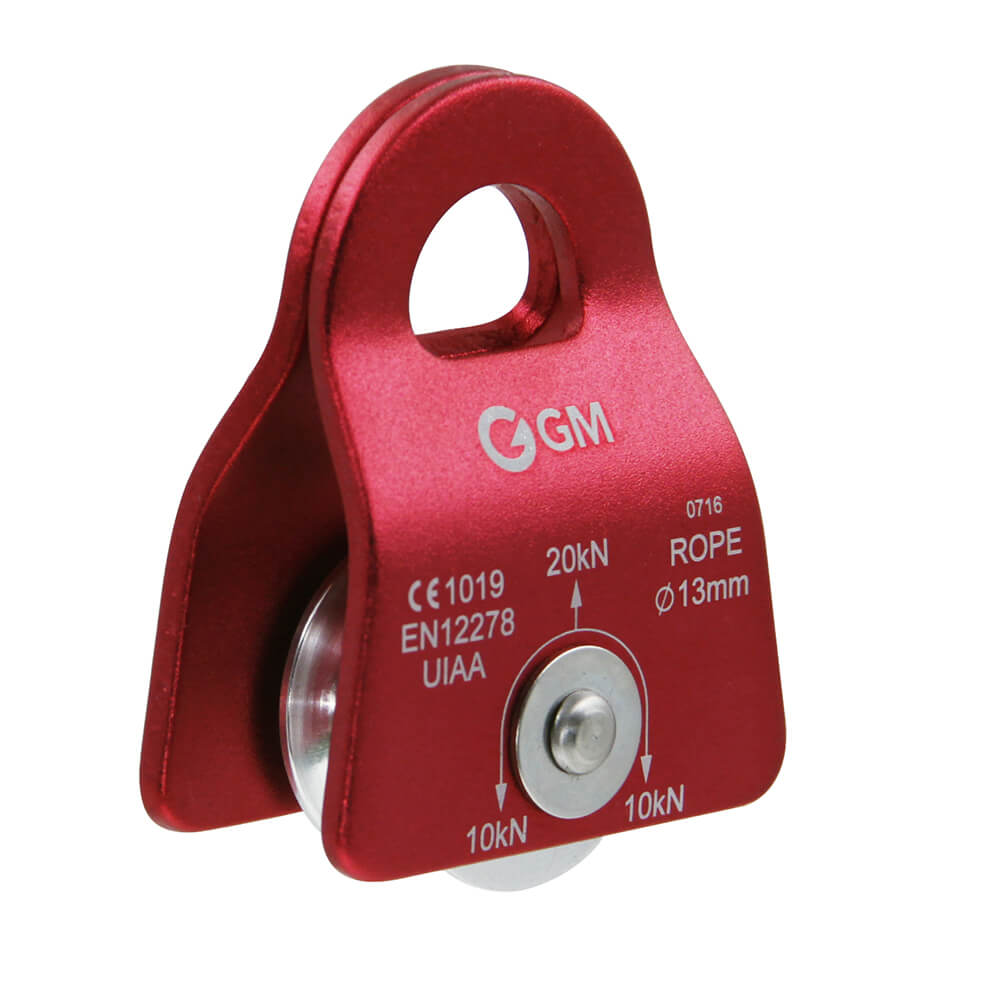

1. Micro Prusik Minding Pulley
Plate: Aluminum Alloy
Sheave: Aluminum
Size: 3.2 x 2.24in
Breaking Strength: 20kN / 4500lbs
Net weight: 105g / 3.7Oz
Max. diameter of rope: 1/2in or 13 mm
Certification: CE1019 EN12278, UIAA

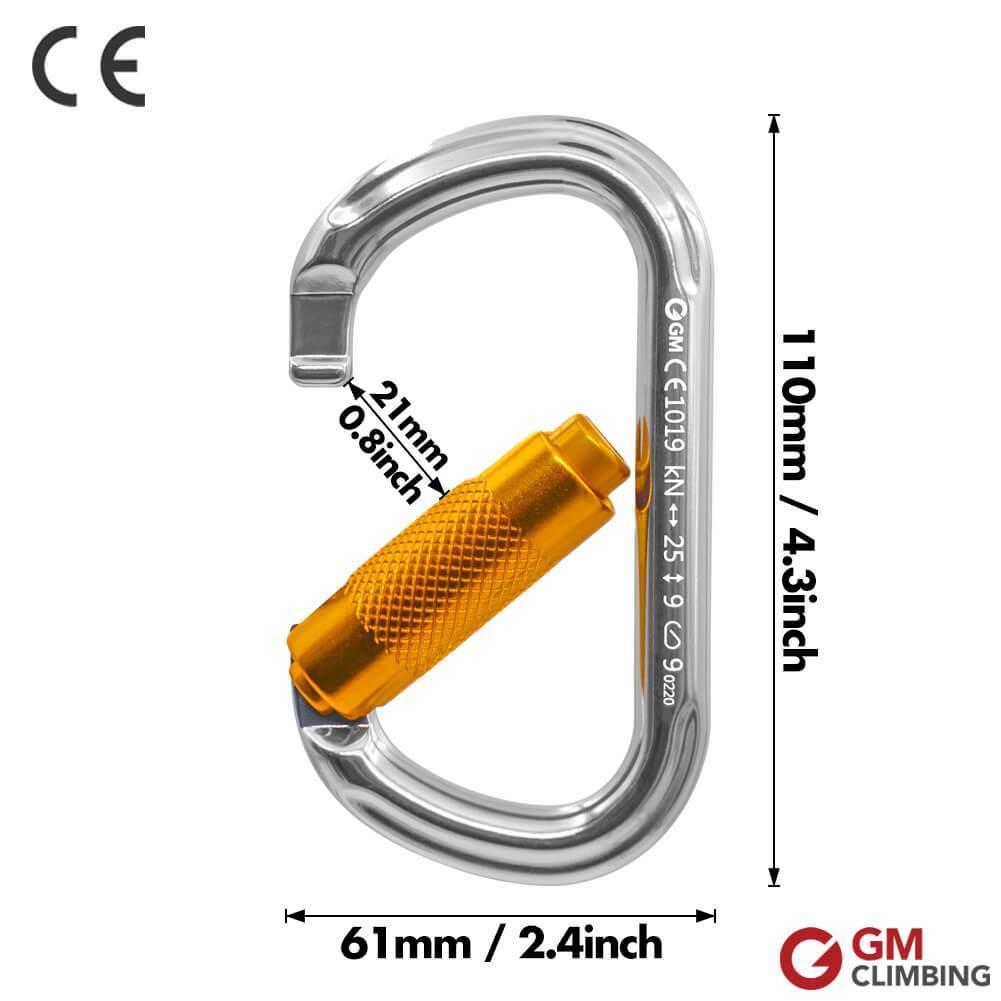

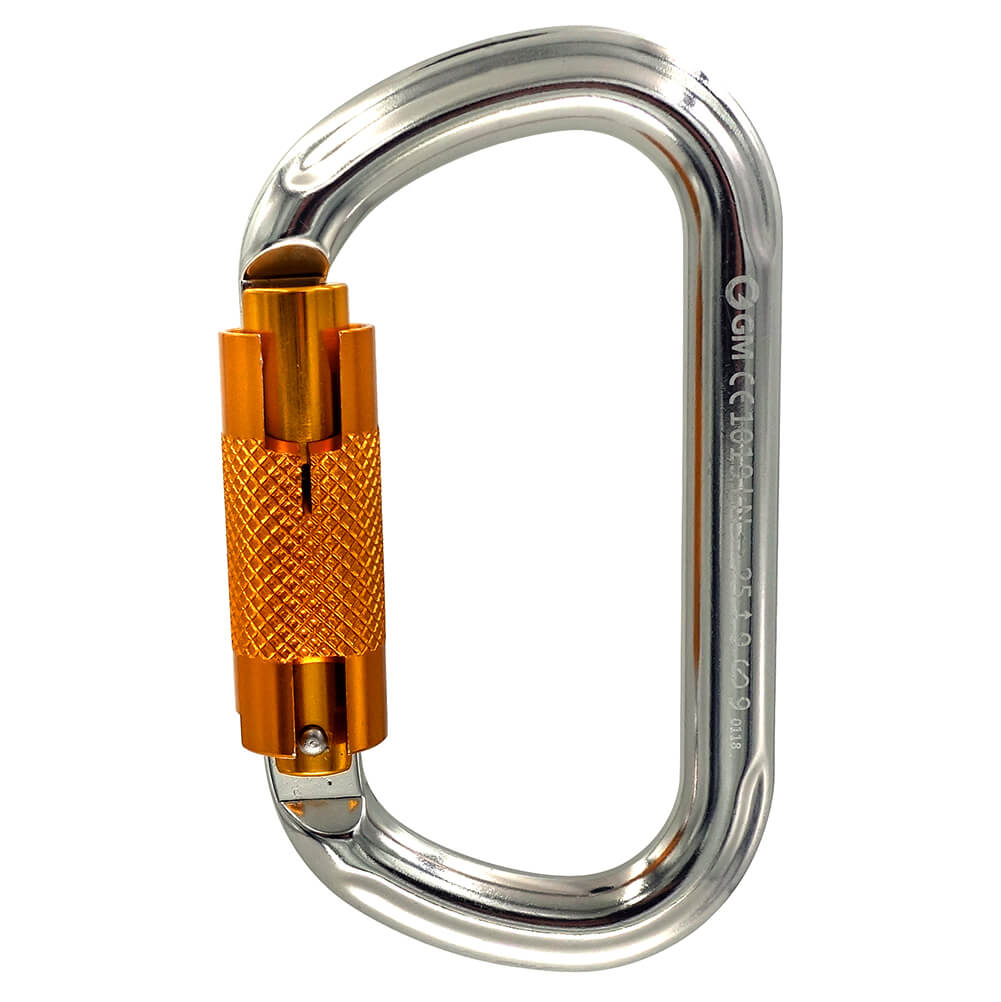

2. Oval Locking Carabiner - 25kN/ 5600lb
Material: aircraft-grade aluminium alloy (anodized)
Breaking Strength: 25kN - minor axis: 9 kN - open gate: 9 kN
Gate opening (d): 21 mm
Net weight: 80g / 2.82Oz
Length: 110mm - Width:60mm
Certification(s) : CE 1019 EN 12275

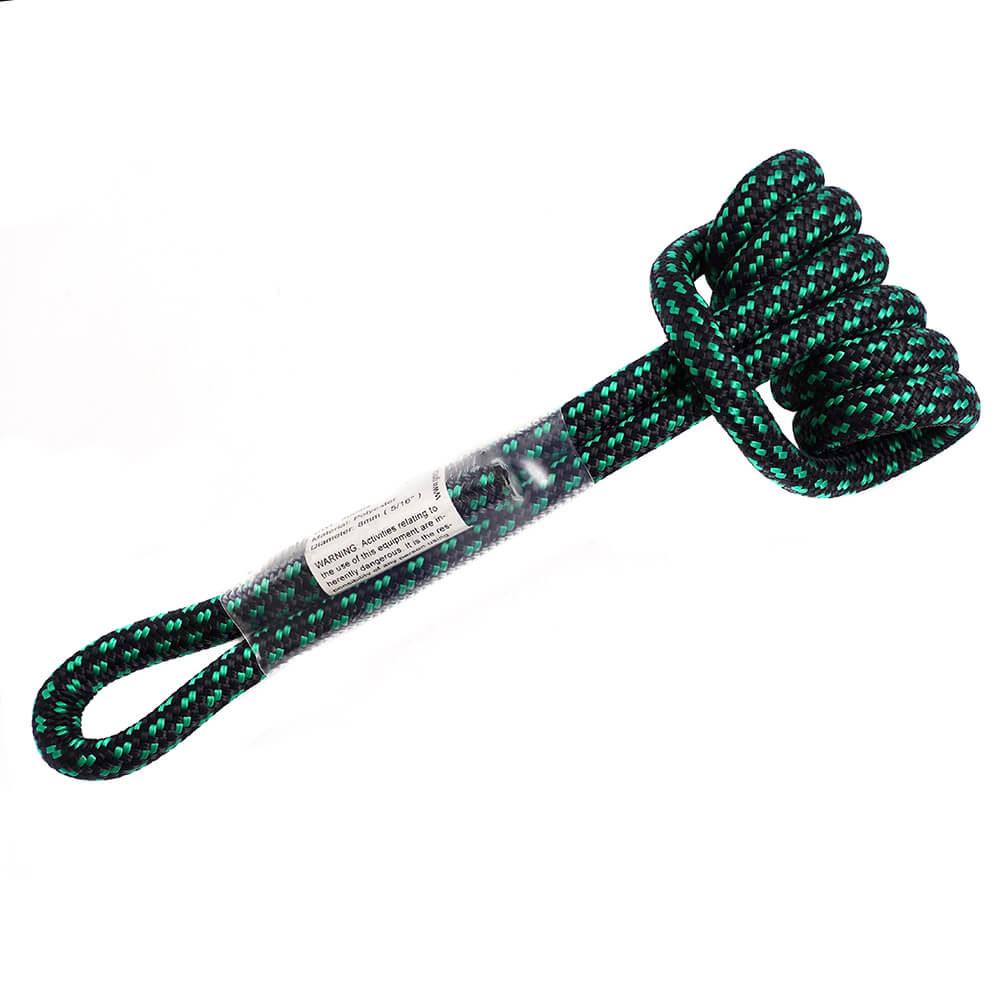

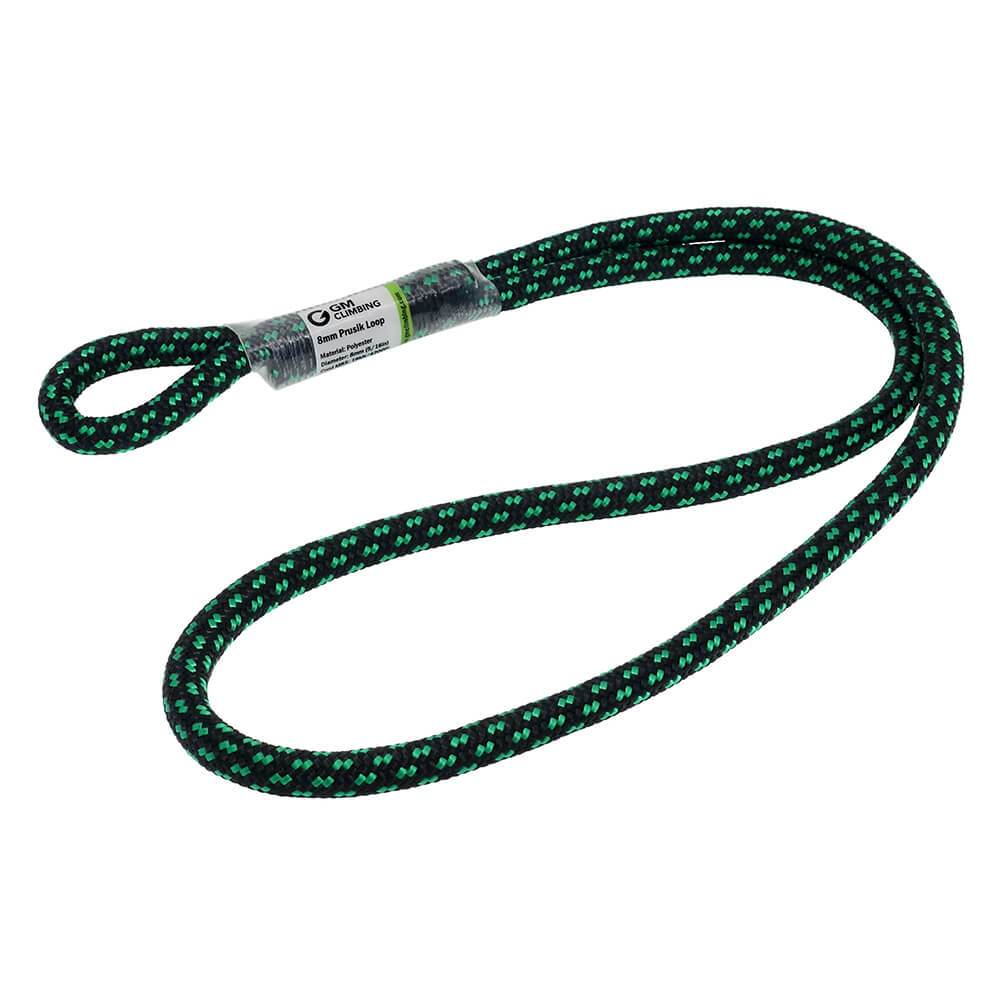

3. 8mm Pre-sewn Prusik Loop - 18inch
One end sewn, Adjustable
Length: 18inch
Diameter: 8mm / 5/16 inch
Meterial: Polyester
Double Braid
Strength: 20kN/4500lb

FEATURES

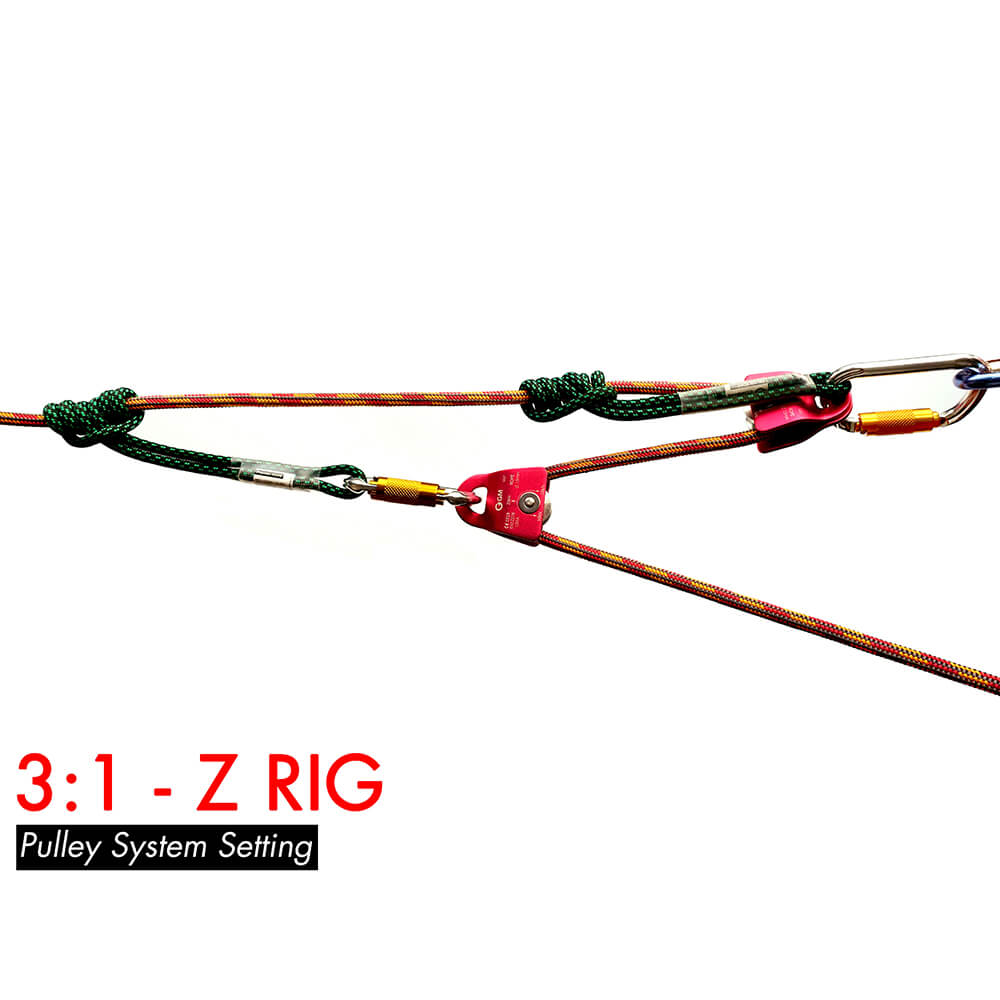

  • Z-rig, a powerful pulley system, is always an ideal choice for rescue, arborist, any hauling and other more than 100 applications.

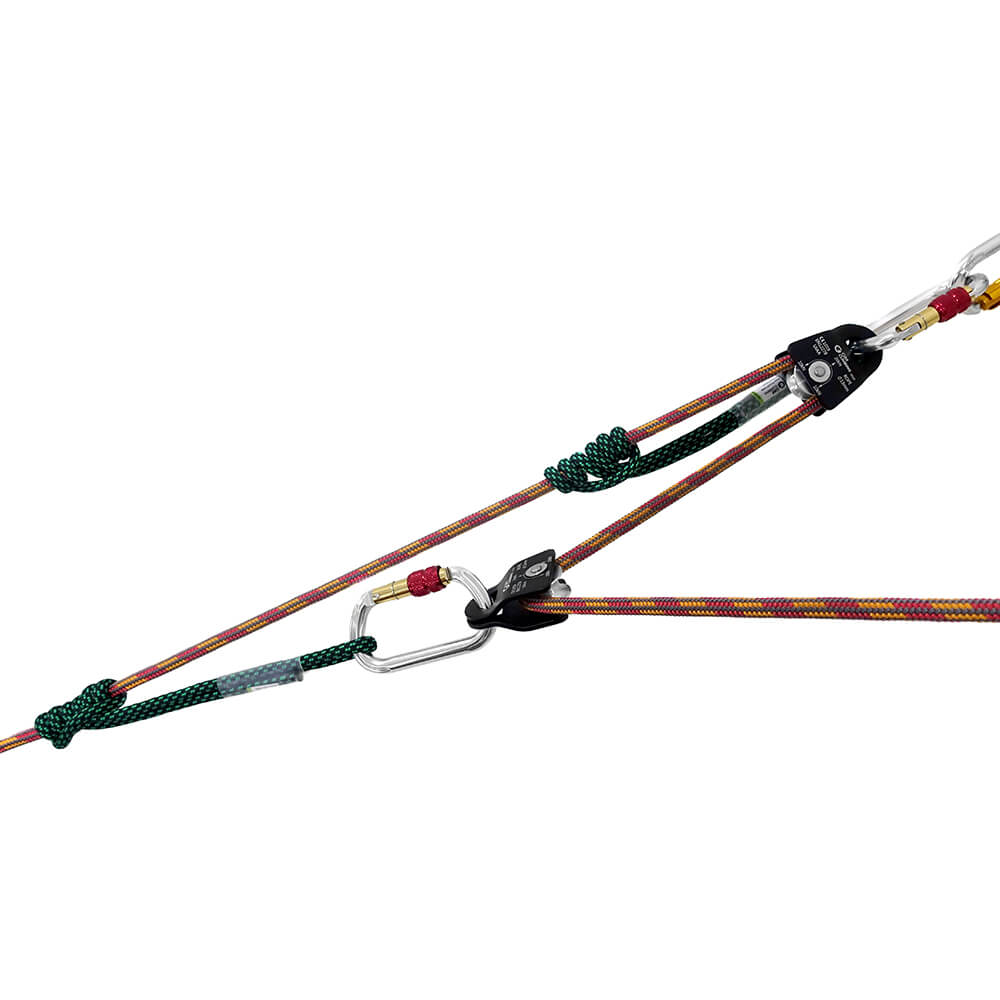

  • This kit assembles all hardware for a basic Z-drag set-up. Whatever you want pull a kayak stuck in the stock, haul something up or tensioning a line, Z-rig will definitely help you to complete.
  • Two Pre-sewn prusik loop are attached to create a progress capture. Once you let go of the rope, the device will bite the rope and stop the load. A smart design!

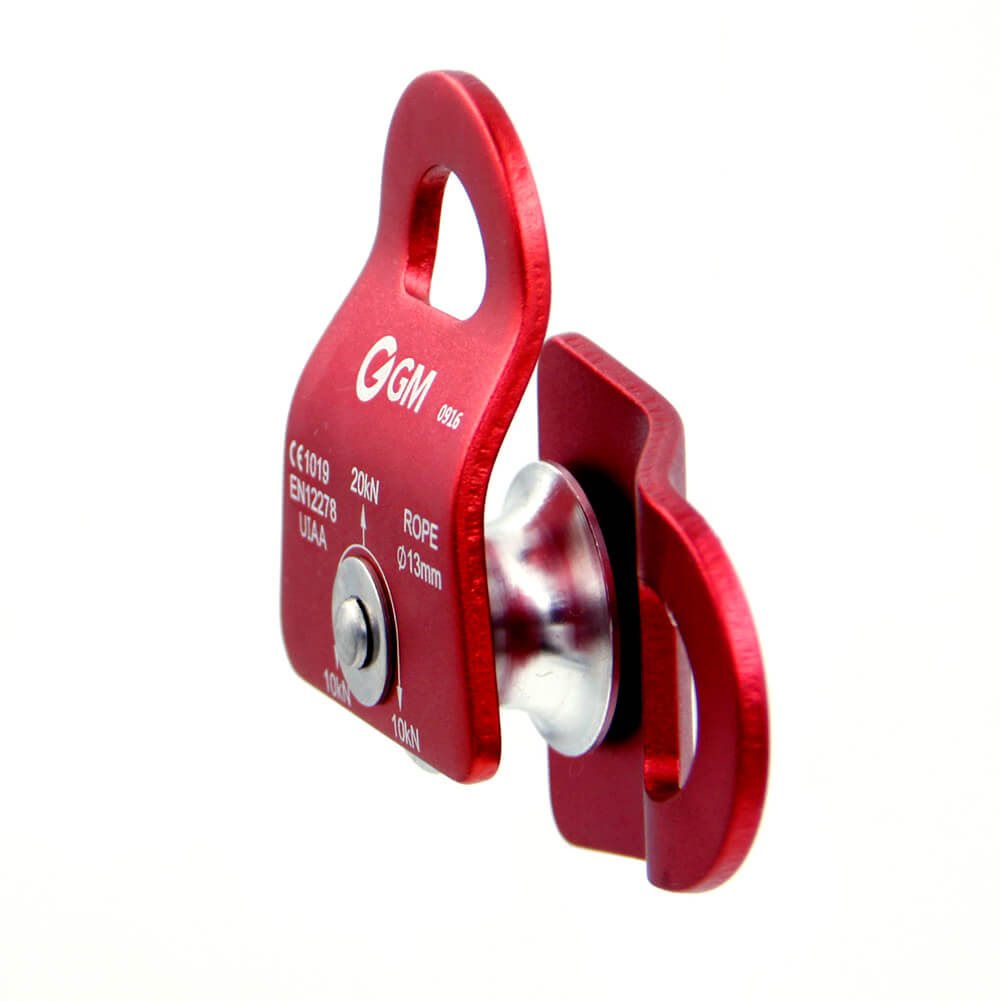

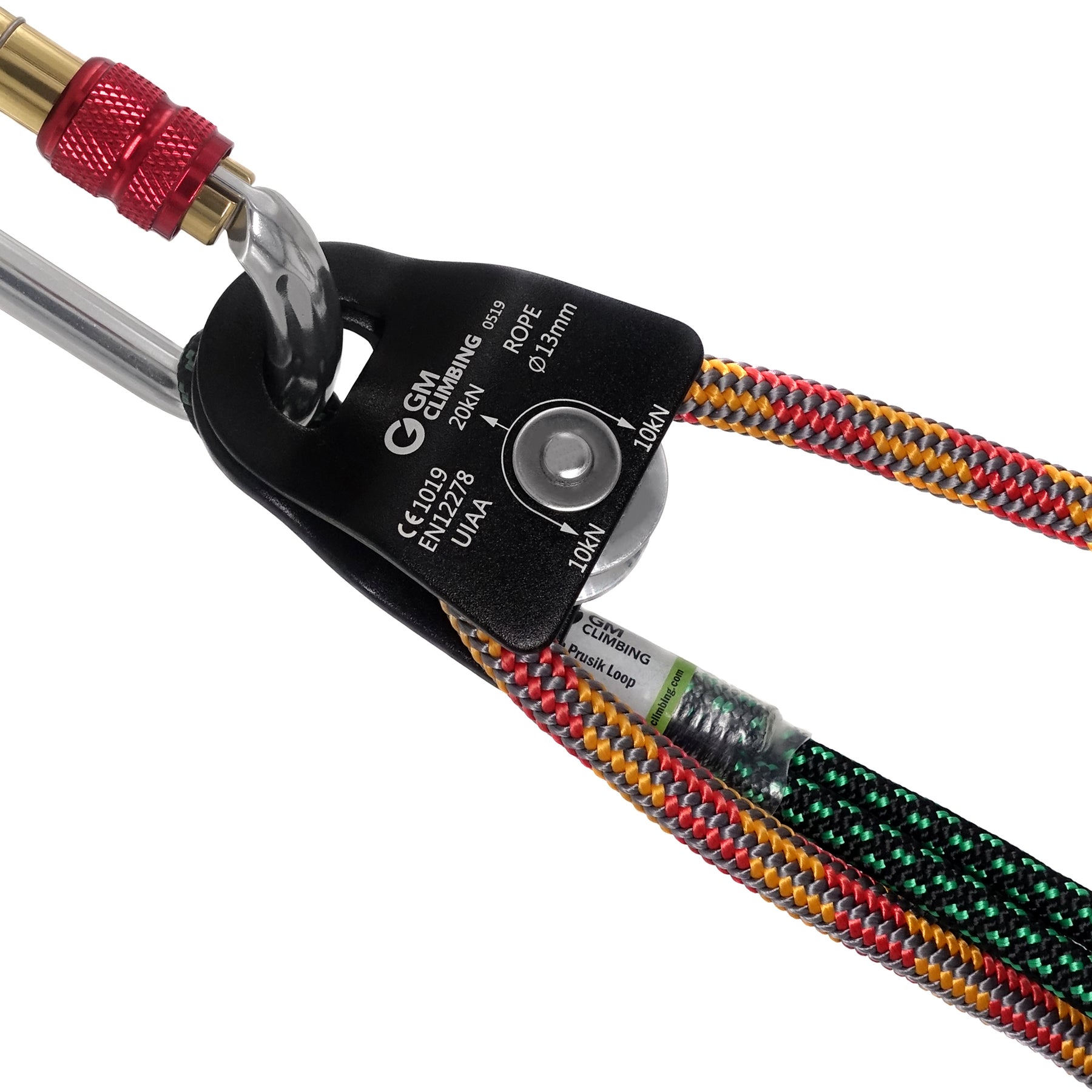

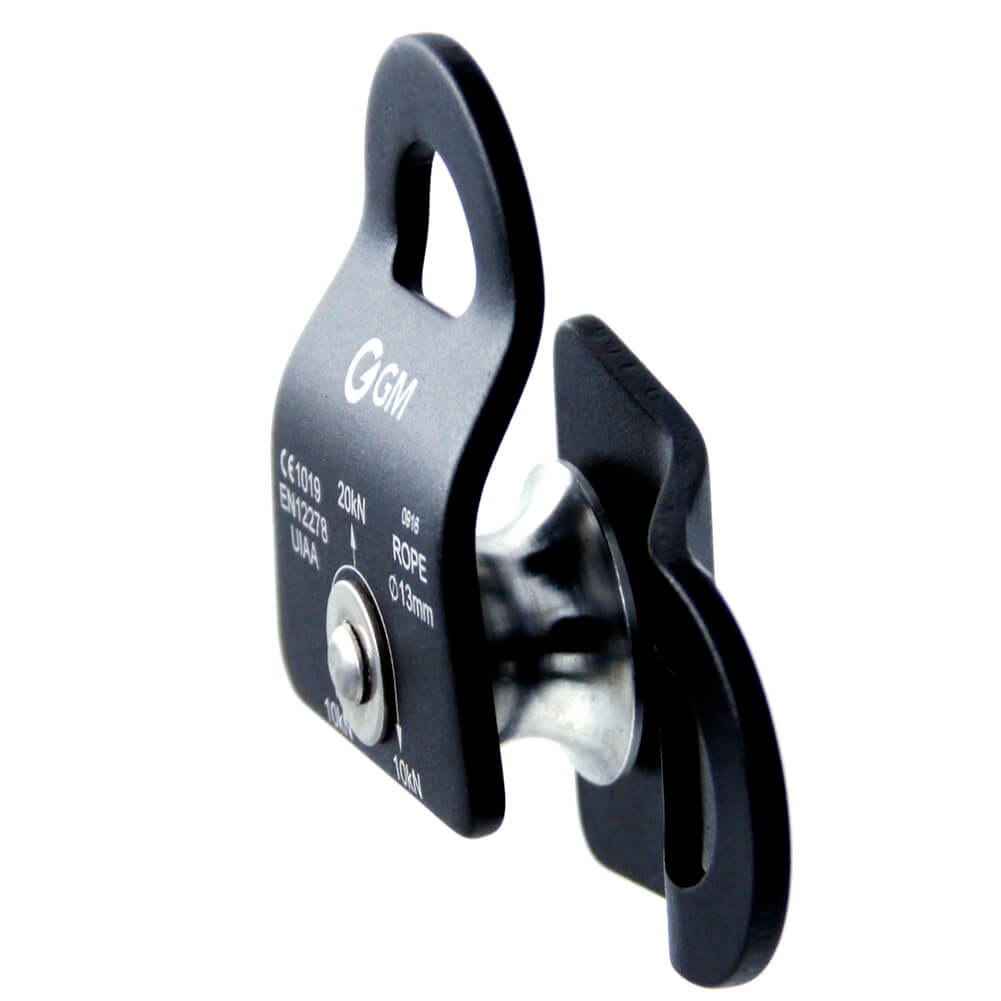

  • Pursik minding pulleys go with it. The pulley provides great smooth rotation and fast speed. Swing plate makes the rope installation and removal easier.

Testimonials

This hardware kit is incredible. The pulleys are smooth rolling, The biners are high quality as is the rest of the kit. glad I chose this kit.

Jeremiah H.

I finally got to use these for summer camp and they worked very well. I was very pleased with them quality is great. Only thing that would be nice is a diagram or pamphlet on different set up options; which is not a big deal. You can find that info online.

D. Rumpf
